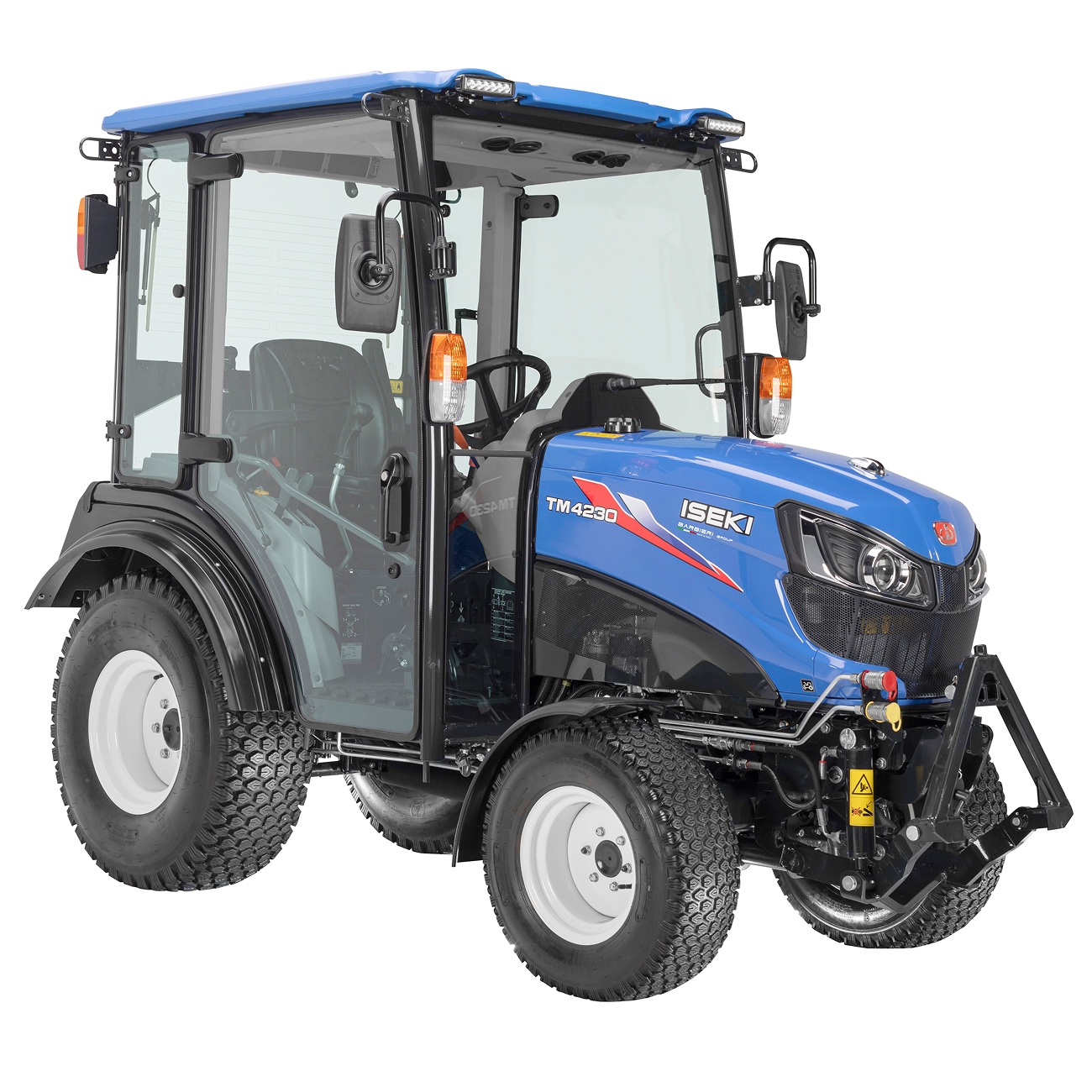

TM4230 M
Compact professional Iseki tractor with 19 HP Stage V diesel engine, 9+9 mechanical transmission, 4WD, and rear lift capacity up to 650 kg, ideal for professional gardening, greenhouses, and grounds maintenance.
| Features | 4-wheel drive, Road approval |
|---|---|
| Weight | 815 kg |
| Dimensions | 282x110x205/236 cm |
| Engine | Iseki Stage V 3 cilindri |
Description
The ISEKI TM4230 M compact tractor is designed to deliver maximum maneuverability, reliability and versatility in professional applications where space is limited but high performance is still required. Thanks to its compact dimensions and low ground pressure, it is ideal for greenhouses, nurseries, gardens, sports fields and sensitive green areas.
It is equipped with a 19 HP Iseki Stage V diesel engine, designed to operate at low engine speeds, reducing fuel consumption, noise and wear. The 9+9 synchronized mechanical transmission with shuttle ensures precise speed control and long-term reliability.
In terms of compactness, power and technical features, the TM4230 M represents a valid alternative for users considering a used tractor under 40 HP, offering the real advantages of a new machine: reliability, Stage V compliance, warranty and optimized operating costs.
The rear lift capacity up to 650 kg (900 kg optional), 540 rpm rear PTO, and 2,000 rpm mid PTO make the TM4230 M compatible with a wide range of professional implement
Technical data
Engine
| Power supply | Diesel |
|---|---|
| Gears | 18 speeds |
| Transmission | Meccanica |
| ROPS | Mid-mounted |
| Power | 22 hp |
| Engine | Iseki Stage V 3 cilindri |
| Tank | 28 LT |
Technical data
| Weight | 815 kg |
|---|---|
| Dimensions | 282x110x205/236 cm |
| Lifting capacity | 900 kg |
Additional information
| Applications | Farmers, Green space professionals, Municipalities, Sports fields |
|---|---|
| Features | 4-wheel drive, Road approval |
Technical specifications
Maximum productivity on large green areas
XCross is designed to ensure professional, uniform and precise mowing, even when maintaining large green areas where operational continuity, speed and result quality are essential.
The floating cutting deck ensures effectiveness even on uneven terrain, while zero-turn steering provides excellent maneuverability.
What truly sets XCross apart is its ZTPS four-wheel steering system, a patent-pending technology that steers the front wheels according to the machine’s trajectory, ensuring greater precision, control and stability compared to traditional systems.
Continuous power, batteries always ready
XCross is a 100% electric solution, designed to offer maximum practicality and operational continuity.
The power system consists of 4 individual 25 V batteries, each with 2.27 kWh capacity, all easily removable, interchangeable and replaceable.
The machine can also work with only 2 batteries installed, while the others can be charged, ensuring extremely flexible battery management.
The advantage is clear: if the batteries in use run out and 2 charged batteries are already available, they can be replaced quickly and easily, allowing work to continue immediately and minimizing downtime.
Autonomous precision, maximum freedom of work
Thanks to GPS/RTK technology, XCross can work autonomously with an extremely high level of precision, memorizing routes and completed tasks so they can be repeated later in the same location with maximum accuracy.
A solution that truly simplifies work, reducing operator effort and significantly easing fatigue during repetitive tasks.
Compact where it really matters
With a height of just 48 cm, XCross stands out for its extremely compact design, allowing it to work easily even in narrow and hard-to-reach spaces.
Its low-profile structure makes it possible to operate effectively under obstacles, solar panels or low vegetation, ensuring precise cutting even where bulkier machines cannot reach.
Compactness designed to offer maximum operational versatility in every context.
Applications
Parks and public green areas
For orderly and continuous maintenance of large surfaces, with quieter operation and consistent cutting quality.
Municipalities and public services
For professional management of urban and peri-urban areas where efficiency, consistency and operator comfort matter.
Sports fields and recreational areas
To keep surfaces well maintained, uniform and always presentable, even over large areas.
Hotels, resorts and hospitality facilities
For contexts where green areas must be tidy and well maintained, with low perceived noise impact.
Corporate green areas and private complexes
For efficient maintenance of large green spaces in company sites, campuses and extensive properties.
Large residential and condominium areas
For frequent operations requiring result quality, low noise and operational continuity.
Photovoltaic fields
For maintenance work in very confined spaces, such as under solar panels.
Technical specifications
Semi-autonomous operation with GPS/RTK
Thanks to GPS/RTK technology, the machines can operate semi-autonomously in defined areas, maintaining accurate and repeatable trajectories.
Ideal for large surfaces and scheduled maintenance: working times, passes and cutting uniformity are optimized, with control and safety always managed by the operator.
Sustainable efficiency
- Reduced or zero emissions, depending on the model selected — hybrid or full electric
- Low noise levels, ideal near homes, schools, parks and hospitality facilities
- Lower impact on air quality and the environment, even in sensitive contexts
- Operational efficiency: less waste, more productive working hours and more rational maintenance
Extreme slopes
Designed to handle significant inclines, ensuring continuous operation and cutting precision even on steep slopes, uneven terrain and difficult access points.
Applications
Difficult and high-risk green areas
Embankments, roadsides, uneven surfaces and areas with obstacles: our remote-controlled robots allow safe and controlled operations even in complex contexts, reducing both working times and risks.
Maintenance for municipalities and public services
From parks to roadsides and urban green areas: a complete range of models to meet different needs, with consistent performance even on tall and dense grass.
Precision agriculture and inter-row management
Automation of operations where constant precision is required. Controlled work between rows and close to plants, with regular and repeatable passes even on uneven terrain and in narrow spaces. Keeping inter-row areas consistently tidy improves accessibility and agronomic management, reducing intervention times and operating costs.
Undergrowth and dense vegetation
Very dense grass, brambles and vegetation residues are managed effectively for land restoration, seasonal clearing and extraordinary maintenance.
Altre applicazioni
Sports fields and recreational areas
Regular cutting and precise maneuver management to keep large surfaces tidy, even with intensive use and rapid regrowth.
Cemeteries and areas with many obstacles
Regular cutting and precise maneuver management to maintain spaces with many obstacles in an orderly way, ensuring control and accuracy during operations.
Photovoltaic fields and solar plants
Compactness, maneuverability and remote control allow operation close to structures with care, keeping the area clean and reducing extraordinary maintenance.
Embankments, canals and hydraulic areas
Ideal for periodic maintenance on embankments and canals: they handle slopes and demanding vegetation while maintaining operational safety and work continuity.
Accessories
Gps Compass Servo Driveâ„¢ 2.0
Integrated GPS-controlled system, fully managed by remote control with no additional device installed.
Rear power lift
Compact and precise lifting system, electrically operated and remotely controlled.
Mixty Atomizer System
Lightweight and precise spraying system, with electronic control and remote-control management.
Flex Trimmer
Efficient cutting solution with quick coupling, adjustable height and maximum practicality.
Flex Cut
Lightweight and versatile implement, with cutting height adjustment and remote-control management.
Snow Blade
Robust snow blade adjustable by remote control, with quick coupling and 3-position orientation.
Multi-function box
Lightweight and resistant aluminum multifunction body, with load capacity up to 100 kg and quick coupling.
